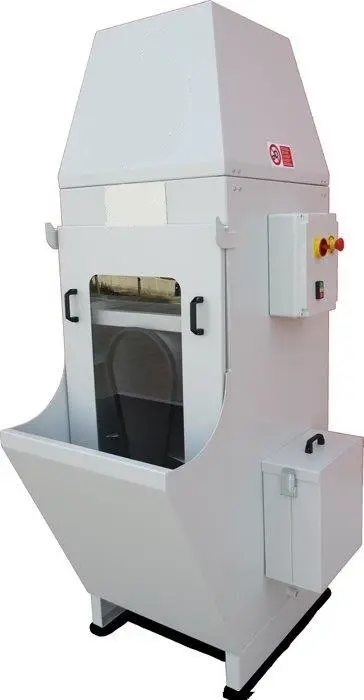

If you frequently perform spark-producing grinding operations, this is one of the most reliable extraction options you can find. The electrical system complies with the latest regulations and is housed in a waterproof metal enclosure, which can also be mounted outside the machine at 400 volts. This advanced Wet-Working Extraction System 2500m³ – 8000m³ for precise wet dust filtration features:
- Powerful soundproof fan
- Water tank with smart float technology
- Generously sized loading door for easy access

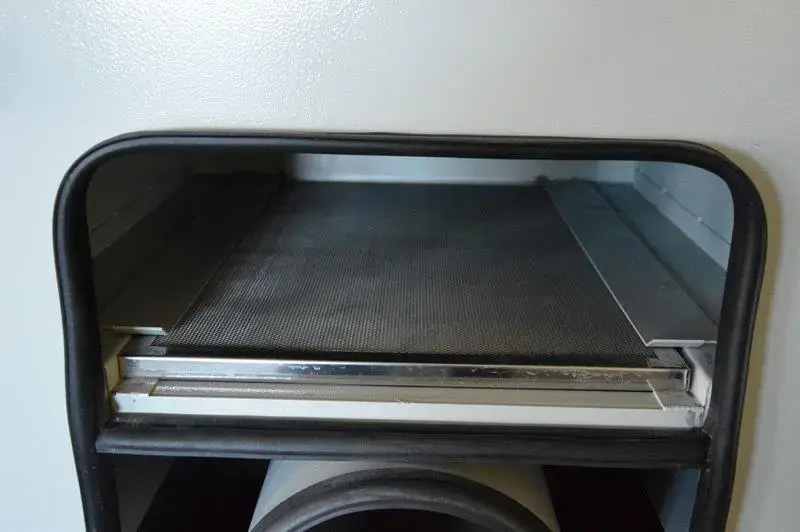

- Filter area with transparent plexiglass sliding panels
- Visible and inspectable start misting
This innovative system is not only designed and manufactured to ensure impressive suction power and safe, trouble-free filtration of dry dust, but it also operates under negative pressure. The operating principle is not only intuitive but also safe, guaranteeing consistent, long-lasting performance.
The sucked-in air spreads through the filter body and slows down as it moves through a vertical labyrinth, which falls multiple times into the water in the underlying tank. This causes the airflow to slow down, creating swirls and mist. These effects force all suspended particles in the air to settle before they reach the fan blades, and thus before they reach the exhaust pipe.

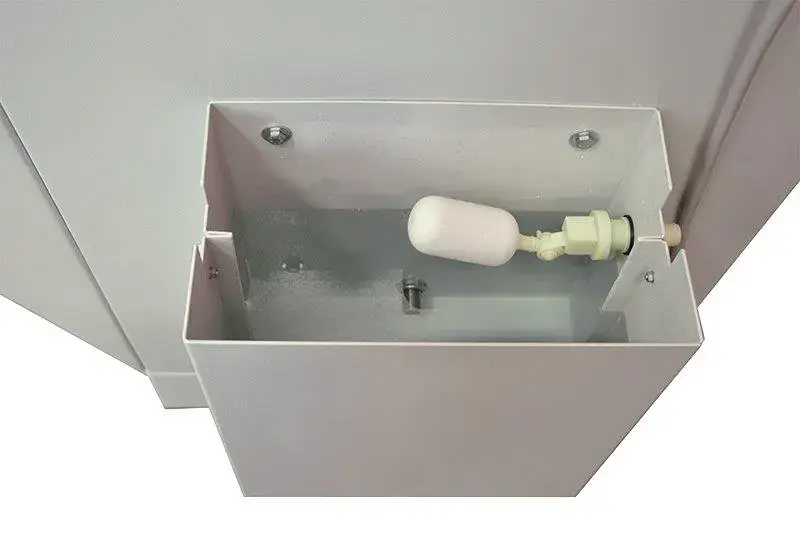

The water tank is kept at a stable level by a sluice gate with smart float technology and can be connected to the water system. The tank is equipped with a convenient sluice and a spacious loading door, making it effortless to empty and clean the machine. In this way, the air is completely purified and achieves an appropriate moisture level.
The electrical system is securely housed in a waterproof metal enclosure, providing protection against accidental shocks. It includes:
- Main switch
- Emergency button
- Start and stop buttons
- Thermal motor protection
The enclosure can be mounted separately outside the machine for added convenience.
This system is entirely made of durable stainless steel and is available in various capacities:
- 2500m3
- 4000m3
- 5000m3
- 8000m3
